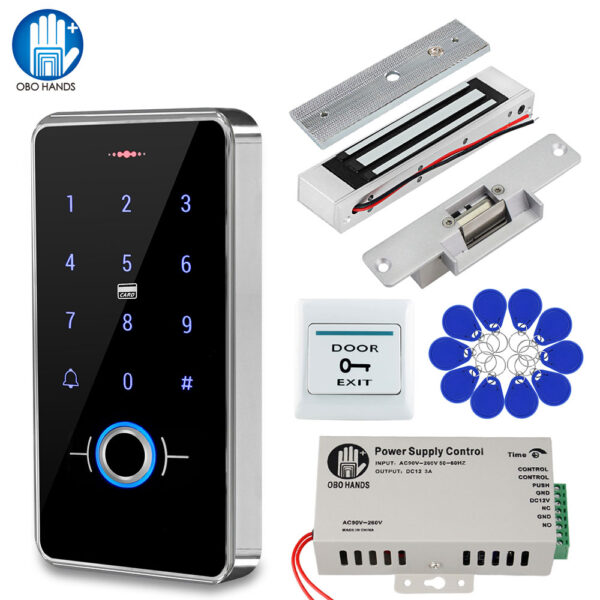

IP68 Waterproof Door Access Control System Biometrics.

Anthony Bamidele

76.24$ – 126.64$

Whatsapp Chat Enquiry
SKU: 4001333268818-1 Category:

Description



  • Brand Name: OBO HANDS
  • Model Number: F20-IC kit
  • Security Mode: Fail Safe
  • Direction: None
  • Type: Waterproof Access Control Kit
  • Working Voltage: DC12V
  • WG interface: WG26 input/output
  • User Capacity: 500 users
  • Unlock Mode: Fingerprint, RFID Card, Password
  • Working Frequency: 13.56MHz
  • Lock1: 180KG Magnetic Lock
  • Lock2: Electric strike lock
  • Lock3: Electric drop bolt lock
  • Bracket: L/U/ ZL Bracket
  • RFID Keypad: S20
  • Access control power supply: DC12V 3A
  • Type1: Door Access control system
  • Type2: RFID system
  • RFID Access control keypad: IP68 Waterproof



A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don’t know how to choose, please contact us after taking a photo of the door, thank you.
Product Description

IP68 Waterproof Fingerprint RFID Access Controller

High quality / 500 user capacity / 3 unlock method

F20_02



Product Specification:
  • User capacity: 500
  • Material: ABS high quality material
  • Panel: touch screen panel
  • Working frequency: 13.56MHz
  • Card reading type: support MF 1K compatible card
  • Card reading distance: 0-5CM
  • Identification method: Fingerprint, RFID card, password
  • Backlight: has blue backlight
  • Waterproof function: IP68 waterproof, can be installed outdoor
  • Doorbell button: support wired doorbell
  • Wiegand signal: WG26 input/output
  • Can set management card: yes
  • Working voltage: DC 12V
  • Working current: ≤ 30mA
  • Door opening time: 0-255 seconds
  • Working temperature: -20 ° C ~ 70 ° C
  • Working Humidity: 20% ~ 90%
  • Product size: 140*70*16mm

F20_04

Product Details:
360 degree comprehensive fingerprint recognition, fast Identify Speed
For different angles of fingerprints, it can be quickly and accurately identified
F20_04
Support Fingerprint, RFID Card, Password to open the door

Support 500 fingerprints, 500 cards, 1 public password user capacity, more secure!

F20_06
Can set Management card. Very easy to program!
Don’t need to connect to computer.
F20_08

IP68 Waterproof. Can be installed outdoor

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

F20_10

Blue Backlight keypad

The digits number can be seen clearly even at dark

F20_12

Power Supply:
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm
F20_16
Door Exit Button:
Material:Hard Plastic
Maximum Power Rating:36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86X86MM ( L / W  )
RFID Keyfobs:
13.56MHz frequency RFID key card
Operating frequency: 13.56MHz
Detection range: 0-10cm
Quantity: blue
Package List
Kit3:  Suitable for wooden door, metal door. Convenient and beautiful. No need bracket
Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs
(We will send the NC type by default, if you want NO type, please leave us a message.)

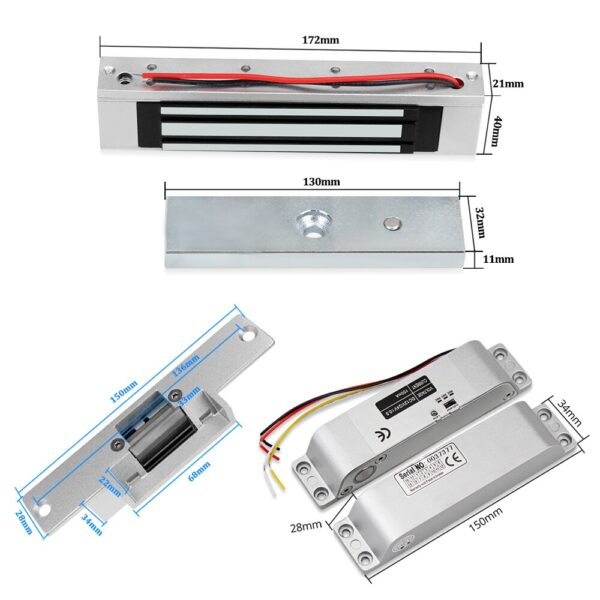

Working Voltage: 12V ± 10%
Current: 200mA – 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）
F20套装-_02
Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.
Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs
Working voltage: 12V
Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )​
F20套装-_04
Kit5: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside
F20套装-_06
Kit6: Suitable for frameless glass door. Need U bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs
If your door is frameless glass door, then will need a U bracket
Size of  U  Bracket:  130* 33 * 26mm (L/W/H)
F20套装-_08
Kit7:Suitable for wooden, metal door. Need L bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs
Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
Size of L Bracket:  170* 34 * 25mm (L/W/H)
F20套装-_10
Kit8: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs
If your door is open from indoor, then need to add the ZL bracket.
Size of L Bracket: 170*34*25mm (L/W/H) ,
Size of Z Bracket: 138*45*45mm (L/W/H)
F20套装-_12
Kit9: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + Embedded 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs
Size of the Lock:            192Lx33Wx20H(mm)
Size of Armature Plate:  139Lx32x11H(mm)
Holding Force:                180kg(350Lbs)
Input Voltage:                  12VDC
Current:                           12V/120mA
F20套装-_14
Wiring Diagram
F20套装-_16
AVAILABLE IN NIGERIA. SHIPPING IS NEXT DAY DELIVERY IF WITHIN LAGOS AND 2-4 DAYS DELIVERY IF OUTSIDE LAGOS

Additional information

Color

RFID Keypad with Key, Kit without Lock, Kit3, Kit4, Kit5, Kit6, Kit7, Kit8, Kit9
